100m² Set Tacker System Rolljet 30 mm 17 x 2 PE-RT Pipe Grid 10 cm + Accessories

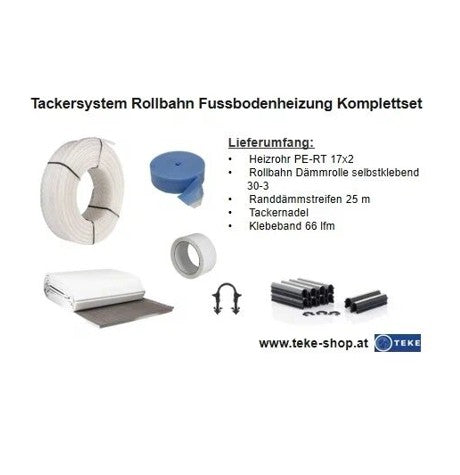

Underfloor Heating Tacker System Set 100m² – Complete Set for Energy-Efficient Heating The 100m² underfloor heating tacker system set with Rolljet insulation roll and PE-RT heating pipe offers you a professional and energy-saving solution for new construction and renovation projects. The complete set enables quick and flexible installation of your underfloor heating – ideal for modern heat pumps and low flow temperatures. Complete scope of delivery – everything in one set Rolljet insulation roll, 30 mm (6.5 kN) – high-quality thermal and impact sound insulation with self-adhesive overlap PE-RT heating pipe, 17 x 2 mm – flexible, oxygen-tight pipe according to DIN 4726 Edge insulation strip, 150 x 8 mm, 25 meters PE adhesive tape, 66 m for secure connections Tackers for fastening the heating pipes Delivery time is subject to Agreement.

Advantages of the tacker system for your underfloor heating

✓ Simple and quick installation – flexible laying without complex fixing systems ✓ Low installation height – ideal for renovations with limited ceiling height ✓ Integrated thermal and impact sound insulation with a 29 dB improvement ✓ Energy efficient – optimal heat distribution for low heating costs ✓ Compatible with wet and dry screed ✓ Suitable for all floor coverings (tiles, laminate, parquet)

Technical data Rolljet tacker system 30mm table tbody tr Roller dimensions: 1,000 x 10,000 mm Material: Polystyrene foam EPS 045 DES sm Building material class: B2 (flame-retardant) Compressive strength: 4 kPa (40 kN/m²) Dynamic stiffness: 15 MN/m³ Thermal resistance: 0.667 m²K/W Impact sound reduction: 29 dB Packaging unit: 10 m²

Technical data PE-RT heating pipe 17 x 2 mm

Maximum operating temperature:

70 °C

Maximum Operating pressure: 6 bar (Standard for underfloor heating: max. 4 bar) Operating conditions: According to EN 12319, user class 4/5 Standards: Complies with DIN 4721 Oxygen tightness: According to DIN 4726 Bending radius: 5 x pipe diameter (= 85 mm) Why PE-RT pipe for Underfloor heating? PE-RT (polyethylene with increased temperature resistance) is the modern material for surface heating systems. It offers excellent flexibility during installation, high temperature resistance, and meets all relevant DIN standards. Oxygen impermeability according to DIN 4726 protects your heating system from corrosion in the long term. Areas of application The tacker system is perfect for: New buildings and renovations Living spaces, offices, and commercial areas Use with heat pumps, gas and oil heating systems Combinations with renewable energies The photos shown are for illustrative purposes only and may differ from the actual product. For professional installation, we recommend hiring an authorized heating contractor. Scope of delivery: Stapler system 100m² 100 m² of roll-up tacker tape, 30 mm - 6.5 kN 5000 anchor clips for pipe fastening 2 rolls of PE adhesive tape, 66 m 4 rolls of RDS 150x8 foil apron, 25 m 1000 m of PE-RT heating pipe, 17x2 mm, on a roll Please note: Individual components from the complete set cannot be returned. Kunden kauften auch diese Produkte EINMAL TEKE IMMER TEKE Einfacher Versand Einfach versenden, Sicher bezahlen! chneller Versand, sichere Zahlung, einfacher Einkauf, garantiert Freude! Einfache Rücksendung Stressfreie Rückgabe! Einfacher Umtausch bis zu 21 Tage lang! KOSTENLOSER VERSAND Kostenlos für Bestellungen ab 5000€ 24/7 Support schnelle und professionelle Unterstützung WÄHLEN SIE DAS LIEFERDATUM Flexible Liefertermine VERLÄNGERTE RÜCKGABE 21-tägiges Rückgaberecht 7% RABATT MIT DEM RABATTCODE „EKTSD2026“ AB EINEM EINKAUFSWERT VON 1200€ Subscribe to our emails Sign up for our newsletter to get the latest news about our company, your favorite products, and great deals. Twój e-mail... Zapisz się Twój koszyk Nie masz żadnych przedmiotów w swoim koszyku. Kontynuuj zakupy
