Calido

Brass magnetic filter sludge separator 1″ male thread separator for heating & cooling systems | TEKE SHOP

SKU TKMAGNETFILTER1
€90,00
€90,00

Calido

Brass magnetic filter sludge separator 1″ male thread separator for heating & cooling systems | TEKE SHOP

SKU TKMAGNETFILTER1
€90,00
Brass magnetic filter sludge separator 1″ male thread separator for heating & cooling systems | TEKE SHOP

Wird oft gemeinsam gekauft

Gesamtpreis€160,24

Produktbeschreibung

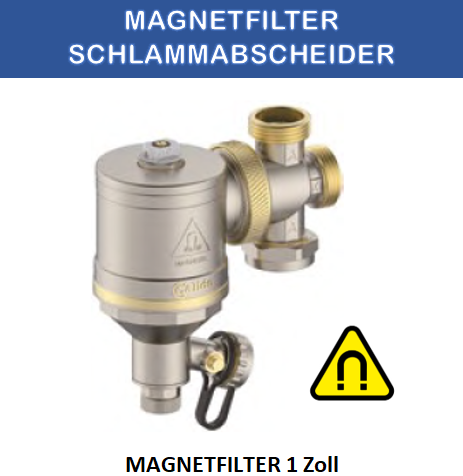

Brass Magnetic Filter Sludge Separator 1″ AG Hydrocyclone for Heating & Cooling Systems


Three-Stage Filtration System

The magnetic filter operates on the principle of a hydrocyclone, combined with magnetic and mechanical dirt removal. The heating system coolant entering the filter chamber is set into rotation and exposed to a magnetic field to separate metal particles. Solid impurities are captured by a mesh filter in the lower part of the magnetic filter and enter the separator. Technical Parameters P max: 10 bar T max: 110 °C Flow rate: Kv = 3.65 m³/h (3/4") / 4.67 m³/h (1") Magnetic power: 11,000 Gauss Mesh size: 500 µm Magnet type: Neodymium Maximum heating system output: 24 kW Housing material: Brass Mounting wrench: Included Heat transfer medium: Water or water-glycol solution with a maximum concentration of 40%.

The photos shown are for illustrative purposes only and may differ from the actual product!
