20 sqm set studded system 11mm 16x2 aluminum composite pipe

20 sq m Set Studded System 11 mm 16x2 Aluminum Composite Pipe 15 cm Grid + Accessories

TEKE Underfloor Heating Studded System Basic Set including aluminum composite pipe is the ideal foundation for even, cost-effective and energy-efficient heating of your home. We supply all the necessary components.

Discover the numerous advantages of underfloor heating:

• Evenly distributed heat:
  Compared to localized heat sources such as radiators or fireplaces, underfloor heating, as a surface heating system, ensures a constant and comfortable temperature throughout the entire room.


• Efficiency:
  The long pipe length of underfloor heating enables excellent heat storage, especially when installed in the screed. This optimizes the efficiency of your heating system.
• Less energy consumption:
  Thanks to the low flow temperature compared to conventional heating systems, underfloor heating reduces your energy consumption and therefore your heating costs.

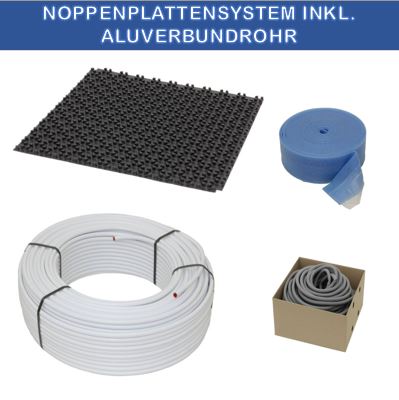

The basic studded system set includes the following components:

1. Basic studded system panel 11mm


   1. Insulation thickness: 11 mm
   2. Stud height: 17 mm
   3. Suitable for: 14 - 16 mm pipe
   4. Panel dimensions: 1,025 mm x 1,025 mm
   5. Usable area: 1,000 mm x 1,000 mm
   6. Rd value (thermal resistance): 0.314 m²K/W
   7. Traffic load: 45 kPa
   8. Color: black
2. Sealing cord 50 m/roll


   1. Diameter: 16 mm
   2. Packaging unit: 50 m
1. Edge insulation strip 150 x 8 mm 25 m/roll


   1. Size: 150 x 8 mm
   2. Length: 25 Meters
1. Aluminum composite pipe 16 x 2 mm 200 m/roll


2. Max. operating temperature: 95 °C,
3. In case of malfunction: 110 °C
4. For long-term stress at max. operating pressure 50 years: 10 bar / 70 °C
5. DVGW certified
6. Bending radius: 5 x the diameter
