Underfloor Heating Tacker System Set 40m² – Rolljet 30 mm with 17x2 PE-RT Pipe

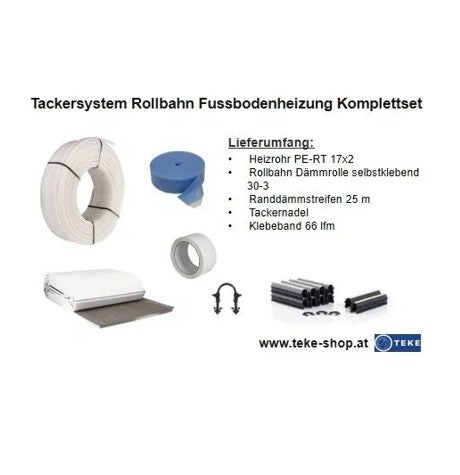

The underfloor heating tacker system PE-RT set makes installing a comfortable underfloor heating system particularly easy and efficient. This complete package was specially developed for DIY enthusiasts and installers looking for a reliable, high-quality solution for areas up to 40 m². Product Features and Benefits Complete Set for 40 m²: Everything you need in one package – no more searching for individual parts. High-Quality Rolljet Insulation: The innovative Rolljet insulation roll (EPS 045 DES sm) offers excellent thermal and impact sound insulation (29 dB improvement) and a high compressive strength of 4 kPa. Durable PE-RT Pipe: The 17 x 2 mm PE-RT pipe is oxygen-tight according to DIN 4726, withstands maximum operating temperatures of 70 °C and pressures up to 6 bar (user class 4/5). Easy Installation: The tacker system allows for quick and secure installation of the heating pipe in a 10 cm grid. Accessories included: Edge insulation strips, PE adhesive tape, and staples are included. Scope of delivery of the 40 m² set All essential components are included in the set: Rolljet insulation roll, 30 mm: For 40 m² (4 rolls of 10 m² each) PE-RT pipe, 17 x 2 mm: Sufficient quantity for installation in a 10 cm grid Edge insulation strips: Size 150 x 8 mm, length 25 Meters

Delivery time is by arrangement.

Technical Details and Data

Rolljet Insulation Staple System

• Roller Dimensions: 1,000 x 10,000 mm (per roll)
Material: Polystyrene Foam EPS 045 DES sm Building Material Class: B 2 Compressive Strength: 4 kPa (6.5 kN/m²)
• Dynamic Stiffness: 15 MN/m³ Thermal resistance (λλ): 0.667 m² K/W Impact sound reduction: 29 dB Packaging unit: 10 m² per roll PE-RT pipe 17 x 2 mm Maximum operating temperature: 70 °C Maximum operating pressure: 6 bar (Standard operating pressure for underfloor heating: max. 4 bar) Operating conditions: According to EN 12319, user class 4/5 (surface heating / Radiator connection)
• Technical requirements: Complies with DIN 4721
Oxygen-tight: According to DIN 4726 Bending radius: 5 x pipe diameter
