Underfloor Heating Tacker System Set 50m² – Rolljet 30 mm with 17x2 PE-RT Pipe

The Underfloor Heating Tacker System PE-RT Set makes installing a comfortable underfloor heating system particularly easy and efficient. This complete package was specially developed for DIY enthusiasts and installers looking for a reliable, high-quality solution for areas up to 50 m².

Underfloor Heating Tacker System PE-RT Set Product Features and Benefits Complete Set for 50 m²: Everything you need in one package – no more searching for individual parts. High-Quality Rolljet Insulation: The innovative Rolljet insulation roll (EPS 045 DES sm) offers excellent thermal and impact sound insulation (29 dB improvement) and a high compressive strength of 4 kPa. Durable PE-RT Pipe: The 17 x 2 mm PE-RT pipe is oxygen-tight according to DIN 4726, withstands maximum operating temperatures of 70 °C and pressures up to 6 bar (user class 4/5). Easy Installation: The tacker system allows for quick and secure installation of the heating pipe in a 10 mm grid. cm.

Accessories included: Edge insulation strips, PE adhesive tape, and staples are included.

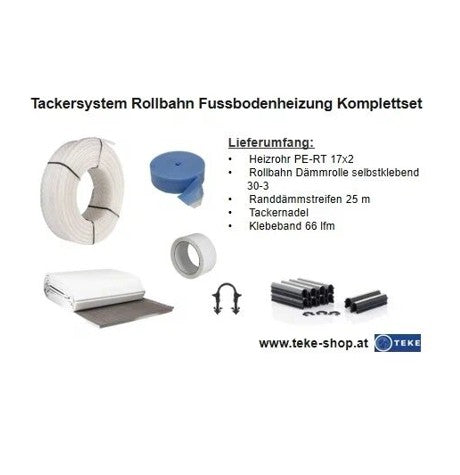

Scope of delivery of the 50m² set

All essential components are included in the set:

• Rolljet insulation roll, 30mm: For 50 m² (5 rolls of 10 m² each)
• PE-RT pipe 17 x 2 mm: Sufficient quantity for installation in a 10 cm grid
• Edge insulation strips: Size 150 x 8 mm, length 25 meters
• PE adhesive tape: 66m roll
• Tackers: Sufficient quantity for fixing

Delivery time is by arrangement.

Technical details and data

Rolljet insulation tacker system

Roller dimensions: 1,000 x 10,000 mm (per roll) Material: Polystyrene foam EPS 045 DES sm Building material class: B 2 Compressive strength: 4 kPa (6.5 kN/m²) Dynamic stiffness: 15 MN/m³
• Thermal resistance (λλ): 0.667 m² K/W
Impact sound insulation: 29 dB Packaging unit: 10 m² per roll

PE-RT pipe 17 x 2 mm

Maximum operating temperature: 70 °C Maximum operating pressure: 6 bar (Standard operating pressure for underfloor heating: max. 4 bar) Operating conditions: According to EN 12319, user class 4/5 (surface heating / radiator connection) Technical requirements: Complies with DIN 4721

Oxygen-tight: According to DIN 4726

Bending radius: 5 x pipe diameter

The photos shown are for illustrative purposes only and may differ from the actual product!

...
