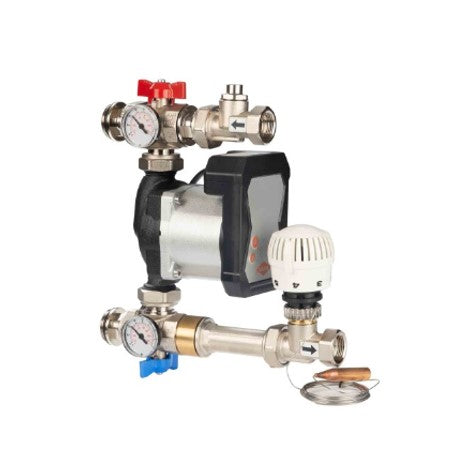

Fixed-value control station for underfloor heating with Wita high-efficiency circulation pump, standard 130mm

Compact control station for underfloor heating with Wita high-efficiency circulation pump, standard 130 mm AVAILABLE BY PRE-ORDER ONLY Ready-to-install, compact control station with WITA high-efficiency circulation pump WITA high-efficiency pump HE OEM 2 40/60 Maximum head: 4.0 m | 6.0 m; Maximum flow rate: 2,800 l/h | 3,600 l/h Power consumption: 3–25 W | 3–45 W Control: 3 constant curves, 2 constant pressure curves, 2 proportional curves Additional functions: automatic night setback, LED consumption display, anti-blocking function Supply voltage: 1 x 230 V, 50 Hz Motor protection: no external motor protection required; Protection class: IP 42; Ambient temperature: 0 °C to +40 °C Media temperature: +5 °C to +110 °C; Temperature class: TF 110 acc. to DIN EN 60335-2-51 System pressure: max. 10 bar; Connection sizes: DN 20, DN 25, DN 32 Installation length: 130 mm; Material: Pump housing, cast iron, cataphoresis coated Weight incl. insulation: 2.5 kg The photos shown are for illustrative purposes only and may differ from the actual product!
