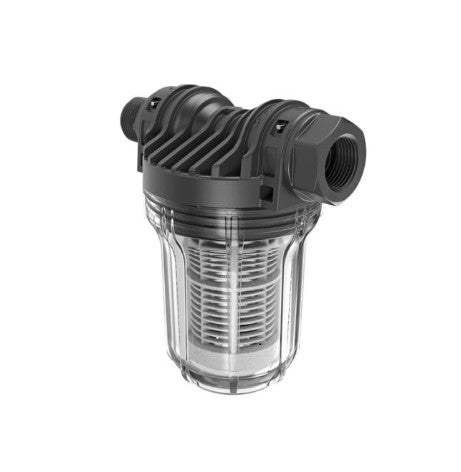

Grundfos washable suction filter for Scala1 and Scala2

Grundfos Suction Filter for SCALA1 and SCALA2 – Washable

When the SCALA1 or SCALA2 domestic water supply systems are used to pump rainwater or well water, it is recommended to install a filter on the suction side. This protects the pump from sand, gravel, or deposits with a grain size larger than 250 μm, thus extending its service life. Features at a Glance Filter Material: Washable plastic filter with a 250-micron mesh size Versatile Installation: Suitable for mounting on the suction or pressure side (max. operating pressure: 8 bar) Effective Protection: Ensures clean water and increases the pump's service life Easy Handling: Quick installation, easy maintenance, and cleaning Low Pressure Loss: Maximum pressure loss of 0.8 bar Heat Resistant: Suitable for media temperatures up to 50°C °C

The filter's square mesh structure ensures an even water flow across the entire filter surface, minimizing the risk of clogging. Thanks to its smooth surface, the filter is easy to clean and rinse. With a filtration efficiency of 80%, it remains consistent even with repeated use.

Materials

• Filter cartridge: Made of talc-filled polypropylene and welded nylon mesh
• Filter housing: Made of robust composite material

Note:

Using a filter on the suction side may reduce the pump's maximum suction lift.
