• Stainless steel heating circuit manifold - 2-way - underfloor heating - with ball valve set - corner - short

TEKE SHOP

Stainless steel manifold for underfloor heating (2 circuits) | Includes short angle ball valve, vent, and drain.

SKU WIHV2EKK
€105,47
€105,47
Stainless steel heating circuit manifold - 2-way - underfloor heating - with ball valve set - corner - short

TEKE SHOP

Stainless steel manifold for underfloor heating (2 circuits) | Includes short angle ball valve, vent, and drain.

SKU WIHV2EKK
€105,47
Stainless steel heating circuit manifold - 2-way - underfloor heating - with ball valve set - corner - short

Wird oft gemeinsam gekauft

Gesamtpreis€175,71

Produktbeschreibung

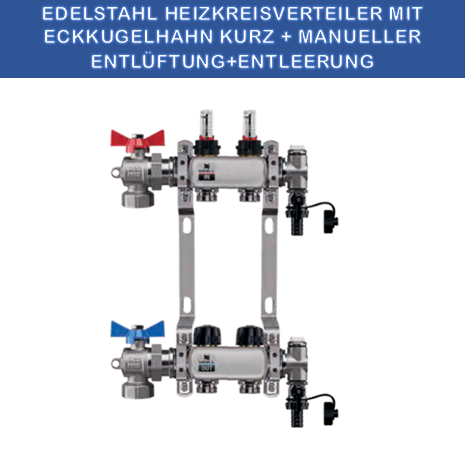

Stainless steel heating circuit manifold for 2 heating circuits – complete set with ball valve corner set + manual venting + drain Maximum efficiency for your underfloor heating: Robust stainless steel manifold for 2 heating circuits included Mounting accessories.

Ensure optimal heat distribution in your home. This high-quality  stainless steel heating manifold (material no. 1.4301)  is the ideal solution for modern underfloor heating systems. Thanks to its compact design and the included angled ball valve set, it is perfectly suited for installations with limited space or special connection requirements. The advantages at a glance: ... data-hveid="CAEIBRAA" data-complete="true" data-sae="">Durable & Corrosion-resistant: Made from premium stainless steel (DN32 profile) for maximum service life. Precise hydraulic balancing: Integrated flow meters (topmeters) in the supply line (0.0 – 2.5 l/min) allow for precise adjustment of each circuit. Smart Home Ready: The return line is equipped with pre-adjustable valves that can easily be retrofitted with standard actuators. Easy to install: Offset flow and return manifolds significantly simplify the connection of the heating pipes. T286Pc Complete package: Includes manual air vent, drain valve, and space-saving angle ball valve set. Technical data & Product details:
  • Material: High-quality stainless steel VAT no. 1.4301
  • Number of heating circuits: 2
  • Heat generator connection: 1" internal thread (side)
  • Accessory Tip:
Use our matching actuators and room thermostats to maximize the efficiency of your heating system.

Scope of delivery:
  1. Distribution bar flow & Return 2x Brackets with sound-dampening inserts Ball valve set (angle version) for shut-off Manual vent valves & Drain valves
Important installation note:
To connect the heating pipes, you only need suitable 3/4" Eurocone compression fittings, matched to your pipe diameter (e.g., 16x2 mm or 17x2 mm).


Why choose this heating circuit distributor?
