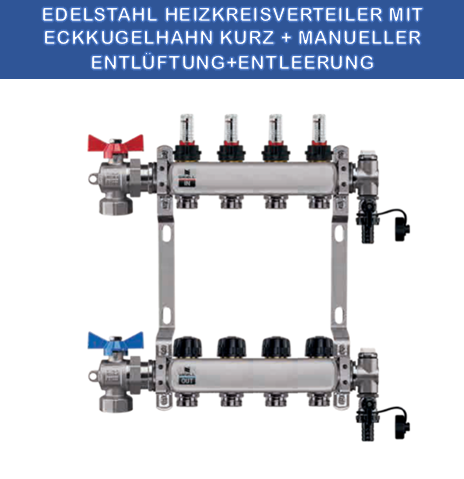

Stainless steel manifold for underfloor heating (4 circuits) | Includes short corner ball valve, vent, and drain.

Optimize your underfloor heating with our high-quality stainless steel heating manifold for 4 heating circuits. This ready-to-install complete system offers maximum corrosion resistance, precise control, and a space-saving design thanks to the included angled ball valve set. Product highlights at a glance: ... Premium Material: Made of robust stainless steel (Wst-Nr. 1.4301) for maximum durability. Precise Control: Integrated flow meters (0.0 – 2.5 l/min) in the supply line for perfect hydraulic balancing. CAQQAg Smart Home Ready: Return valves with hand cap, easily retrofittable with actuators (VA80 adaptation). Easy to install: The offset arrangement of the flow and return pipes greatly simplifies the connection of the heating pipes. Space-saving: Includes short-form ball valve set (corner connection) – ideal for compact manifold cabinets. Technical Details & Dimensions: This manifold was specially developed for the requirements of modern underfloor heating systems. Thanks to the DN32 dimensioning, optimal flow is guaranteed.

• Heating circuits: 4 circuits
• Installation length: 290 mm
• angle ball valve set saves valuable space in the manifold cabinet, while manual venting ensures quick system commissioning.

Accessory Tip:

Use our matching Actuators and room thermostats to maximize the efficiency of your heating system. Scope of delivery: Scope of delivery: Scope of delivery: 1x Flow manifold with 4 flow indicators 1x Return manifold with 4 preset valves 2x Wall brackets with sound insulation 2x Wall brackets with sound insulation inserts ``` 1x Ball Valve Set (Angle Connection, Short) Set for manual venting and draining Note: You will need 3/4" Eurocone compression fittings to connect the heating pipes. The images are for illustrative purposes only and may differ slightly from the final product.
