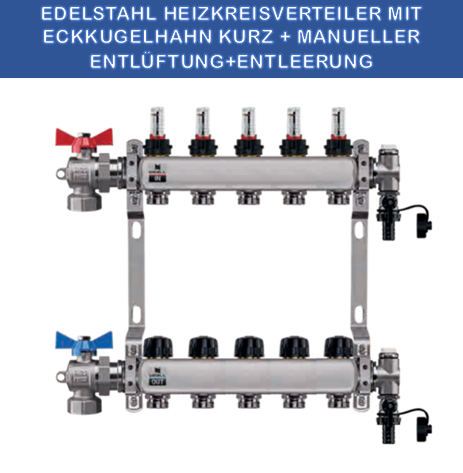

Stainless steel heating manifold for 5 heating circuits – complete set with ball valve corner set + manual venting + drain

Maximum efficiency for your underfloor heating: Our compact 5-way stainless steel heating manifold is the ideal interface between the heat generator and the underfloor heating system. Thanks to the included angle ball valve set (short design), this set is particularly space-saving and perfectly suited for modern, narrow manifold cabinets.

Your advantages at a glance:

• Durable quality: Made of corrosion-resistant stainless steel (Wst-Nr. 1.4301) for maximum operational reliability.
• Precise hydraulic balancing: 5 integrated flow meters (0.0 – 2.5 l/min) enable the exact adjustment of each heating circuit.
• Smart Home Ready: Return valves are prepared for common actuators (VA80 adaptation).
• Simple Installation: Staggered beams significantly simplify pipe connection. Extremely Compact: With a length of only 340 mm, this manifold fits even in small niches. Technical Data & Details Material: Material No. 1.4301 (DN32) Heating circuits 5 circuits Supply connection 1" internal thread (side) Heating circuit outlets 3/4" external thread with Eurocone Center distance 50 mm Total length 340 mm

  Why this complete set?

  This heating circuit manifold offers you perfect control over your room climate. Thanks to the standardized 3/4" Eurocone connections, it is compatible with all common compression fittings. The angle ball valve set allows for clean connection of the supply lines from below or behind, saving valuable space and speeding up installation. Scope of delivery: 1x Stainless steel manifold pair (supply & return) 2x Wall brackets with sound insulation 5x Flow meters & 5x Check valves 1x Angle ball valve set (short design) Set for manual venting & draining font-size: 0.9em; color: #666; margin-top: 20px;">Note: Suitable 3/4" Eurocone compression fittings are required for mounting the heating pipes. The images are for illustrative purposes only and may differ slightly from the actual product.
