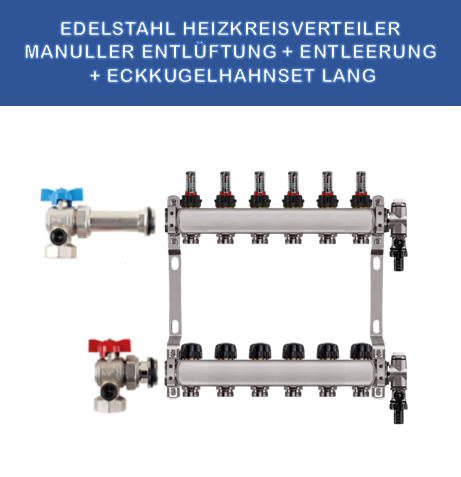

Stainless steel heating circuit manifold for underfloor heating, 6 heating circuits, including ball valve set, corner connection, long

High-quality stainless steel heating manifold – 6 heating circuits including ball valve set (long) Maximum efficiency for your underfloor heating: Our 6-way stainless steel heating manifold impresses with its durable material quality and particularly easy-to-install design. This complete set, including a high-quality, long-version corner ball valve set, is the ideal solution for the precise control of up to six heating circuits in your underfloor heating system. Your advantages at a glance Optimal installation: Offset flow and return manifolds simplify pipe routing and allow for clean installation, even in tight spaces. Precise regulation: Integrated flow meters (0.0–2.5 l/min) in the flow pipe enable precise hydraulic balancing for each heating circuit. Smart home ready: Pre-adjustable return valves with manual adjustment caps, prepared for the easy use of electric actuators for room temperature control. Robust material: Made of corrosion-resistant stainless steel (WSt No.) 1.4301 for long service life and operational reliability in the heating system.

Complete solution: Includes ball valve set with angle connection in a long version for convenient side connection to the riser pipe.

Flexible flow control: Easy flow adjustment with a vent key on the return valve or directly on the flow meter.

Technical data & specifications

Material	Stainless steel WSt no. 1.4301
Heating circuits	6 circuits
Dimension	Stainless steel profile DN32
Connection (heat generator)	1" internal thread (side)
Heating circuit outlets	3/4" male thread with Eurocone
Center distance	50 mm
Manifold length	390 mm (6 heating circuits)
Supply manifold	6 flow meters (0.0 - 2.5 l/min)
Return manifold	Preset valves (Smart Home ready)

Important installation instructions

For proper connection of the heating pipes, 3/4" Eurocone compression fittings are required (not included in the standard scope of delivery). The set includes a special ball valve set with angle connection (long version), which allows for a clean lateral connection to your riser pipe. enabled.

Note: The photos shown are for illustrative purposes only and may differ from the actual product.
