Stainless steel manifold for underfloor heating with 6 heating circuits | Includes short corner ball valve, vent, and drain.
SKUWIHV6EKK
Cena regularna
€165,49
Opis
produktu

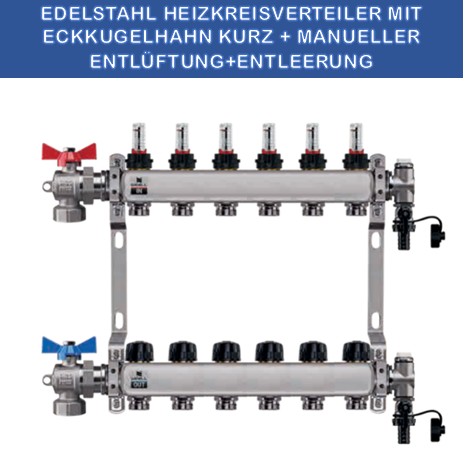

Stainless Steel Heating Circuit Manifold for 6 Circuits – Complete Set with Angle Ball Valve
Optimize your underfloor heating with our professional 6-way stainless steel heating circuit manifold. This high-quality complete set, including an angle ball valve set, was specially developed for efficient heat distribution and space-saving installation in modern heating systems.
Highest Quality & Durability
Made from premium stainless steel (Wst-Nr. 1.4301) in a robust DN32 profile, this manifold offers maximum corrosion resistance. With a compact length of only 390 mm, it is ideally suited for narrow distribution cabinets.
Technical Highlights at a Glance:
ul>
li>
Precise Hydraulic Balancing: Six integrated flow meters in the supply line (0.0 – 2.5 l/min) enable precise control of each heating circuit.
li>
Smart Home Ready: The return manifold features pre-adjustable valves with manual adjustment caps, optimally prepared for actuators (VA80 adapter).
li>
Easy Installation: The offset arrangement of the supply and return lines allows for stress-free connection of the heating pipes.
li>
Flexibility: Flow control is convenient. via air vent key on the return valve or directly on the flow meter.
Technical Data:
Material
Stainless steel 1.4301 (DN32 profile)
Heating circuits
6 Connections
Heat generator connection
1" internal thread (side)
Outlets
3/4" AG with Eurocone (50 mm spacing)
Distributor length
390 mm
Accessories
Incl. Corner ball valve set & Venting
Why this set?
This complete set is the perfect interface between your heat generator and the underfloor heating system. Thanks to the standardized connections, the manifold is compatible with all common 3/4" Eurocone compression fittings. The angle ball valve set allows for neat pipe routing from below or behind, saving valuable installation time.
Scope of delivery:
1x Stainless steel manifold pair (flow & return)
2x Wall brackets with sound insulation
1x Angle ball valve set (short design)
Manual air vents & drain valves
Note: 3/4" Eurocone compression fittings are required for installing the heating pipes. The product photos are for illustrative purposes only and may differ slightly from the actual product.
...
