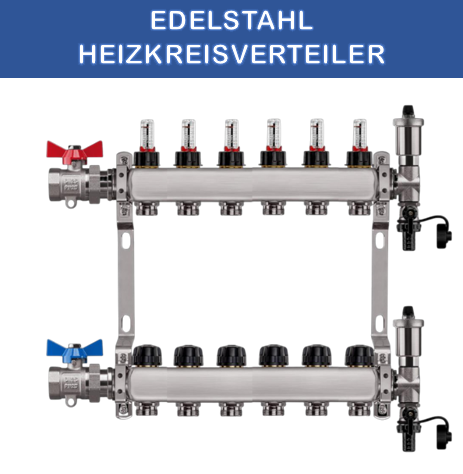

Stainless steel heating circuit manifold for underfloor heating, 6 heating circuits including ball valve set, straight connection

Stainless steel manifold for underfloor heating, 6 heating circuits, including ball valve set, straight connection

Stainless steel manifold for underfloor heating, 6 heating circuits. The flow and return pipes are offset for easier pipe installation.

Manifold with 6 heating circuits
3/4" Eurocone compression fittings are required to connect the various heating pipes
Manifold bar: Stainless steel, material no. 1.4301
Dimension: Stainless steel profile DN32
Side connection (connection to the heat generator): 1" internal thread
Supply manifold: with 6 flow meters, display range: 0.0 - 2.5 l/min
Return manifold: with integrated, pre-adjustable valves:
-- with manual adjustment cap
-- suitable for actuators (valve adapter VA80 required)
Outlets of the individual heating circuits: 3/4" male thread with Eurocone
Distance between individual outlets: 50 mm
Manifold length: 390 mm (6 heating circuits)
Flow control with air vent key on the return valve or directly on the flow meter

The photos shown are for illustrative purposes only and may differ from the actual product!
