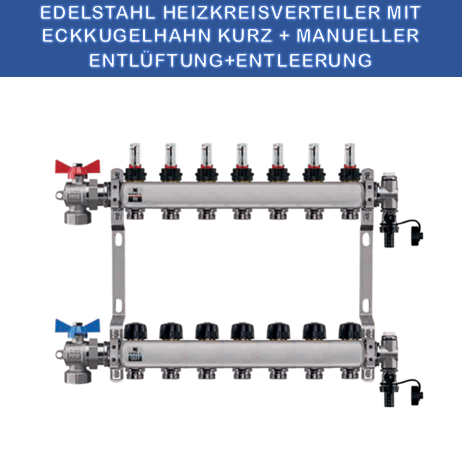

Stainless steel manifold for underfloor heating with 7 circuits | Includes short corner ball valve, vent, and drain.

Stainless steel manifold for underfloor heating, 7 circuits, including ball valve set, corner connection, short

Stainless steel manifold for underfloor heating, 7 circuits.
The flow and return pipes are offset for easier pipe installation.
Manifold with 7 heating circuits
3/4" Eurocone compression fittings are required to connect the various heating pipes
Manifold bar: Stainless steel, material no. 1.4301
Dimension: Stainless steel profile DN32
Side connection (connection to the heat generator): 1" internal thread
Supply manifold: with 7 flow meters, display range: 0.0 - 2.5 l/min
Return manifold: with integrated, pre-adjustable valves:
-- with manual adjustment cap
-- suitable for actuators (valve adapter VA80 required)
Outlets of the individual heating circuits: 3/4" male thread with Eurocone
Spacing Individual outlets: 50 mm
Manifold length: 440 mm (7 heating circuits)
Flow control with air vent key on the return valve or directly on the flow meter

The photos shown are for illustrative purposes only and may differ from the actual product!
