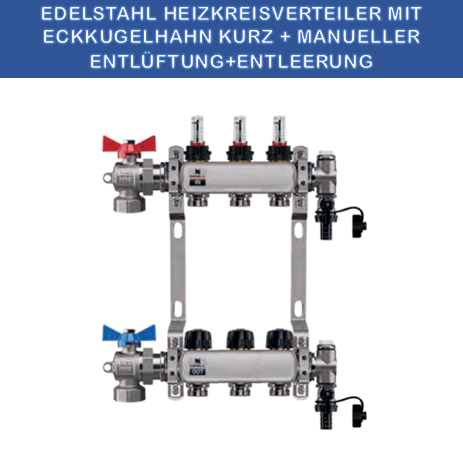

Stainless steel manifold for underfloor heating with 3 heating circuits | Incl. short corner ball valve, vent & drain

An efficient heating system starts at its heart – the manifold. This 3-way stainless steel manifold (material no. 1.4301) offers you the highest technical precision and easy installation. Thanks to the included angle ball valve set, it is particularly space-saving and ideally suited for installations where the supply line comes from the floor or wall. The highlights at a glance: ... Premium Stainless Steel Quality: Robust DN32 profile beam made of stainless steel (1.4301) for maximum corrosion resistance. Perfect Hydraulic Balancing: Three integrated flow meters (0.0 – 2.5 l/min) in the supply line guarantee precise distribution of the heating load. Smart Home Ready: The return line is prepared for common actuators (VA80 adapter) – ideal for intelligent individual room control. Installation Advantage: Offset beams allow for stress-free connection of the heating pipes without space constraints. `````````````````````````````````````````````````````````````````````````````````````````` ```` ```` `````` ``````` `````` ````` `````````````` ``` ``` data-hveid="CAEIBRAE" data-complete="true" data-sae="">Includes professional accessories:Complete set with angle ball valves, manual venting, and drain function.

Technical Details & Specifications:

• Heating circuits: 3 connections
• Material: Stainless steel VAT no. 1.4301 (DN32 profile)
• Main connection: 1" internal thread (side) for connection to the heat generator
• Heating circuit outlets: 3/4" male thread with Eurocone (suitable for all standard pipes)
• Course spacing:50 mm between outlets
• Flow meter for precise adjustment
•


For installation on your heating pipes (PE-RT, aluminum composite pipe, etc.), 3/4" Eurocone compression fittings are required. These can be found in our shop, suitable for your pipe dimensions (e.g., 16x2 mm compression fitting).

Accessory Tip:

Use our matching actuators and room thermostats to maximize the efficiency of your heating system.

• 1x distributor set (forward & return bars)
•


Our heating circuit manifolds meet the highest quality standards for professional trades and DIY projects. Thanks to the pre-adjustable valves, you can sustainably reduce your energy consumption through optimal hydraulic balancing. ` `` `` ``` ``` ``` ``` ``` ``` ``` ``` ``` ``` ``` ```
