Surface-mounted distribution cabinet - max. 10 heating circuits

Surface-mounted distribution cabinet for up to 10 heating circuits – white RAL 9016 The surface-mounted distribution cabinet is a generously sized distribution box for extensive heating circuit systems. Thanks to its sturdy metal construction, it is particularly suitable for apartment buildings and commercial applications.

• Electro-galvanized sheet metal, powder-coated white RAL 9016

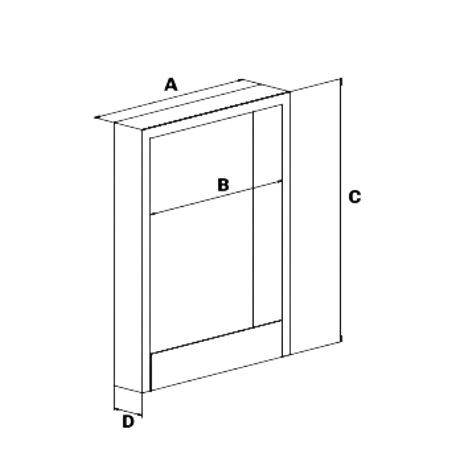

• Cabinet dimensions: approx. 775 × 620 × 135 mm (W × H × D)
• Front cutout A/B: 760 × 730 mm
• Internal dimension C: 580 mm, depth D: 120 mm
• Suitable for 10 heating circuits, plus 7 additional connections
• High stability for professional heating distribution systems
• Optimal solution for underfloor heating and radiator distribution
• Weight: approx. 6.4 kg
• Made in EU, 2-year warranty

The The surface-mounted distribution cabinet offers ample space for complex distribution systems and additional components such as shut-off valves, flow meters, or control valves. The elegant white finish complements common interior design concepts. Please note that when using control stations, heat meters, or similar components, the width of the distribution cabinet must be adjusted accordingly. The photos shown are for illustrative purposes only and may differ from the actual product.
