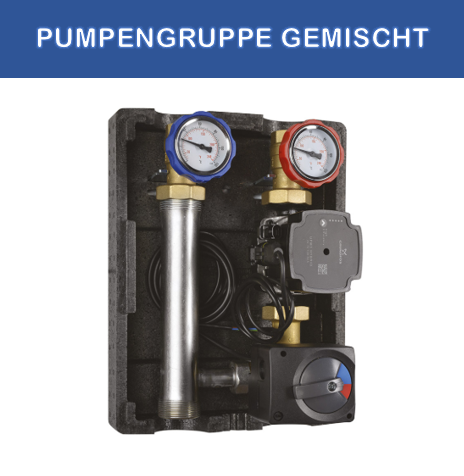

Pump group mixed with Grundfos UPS 25/65

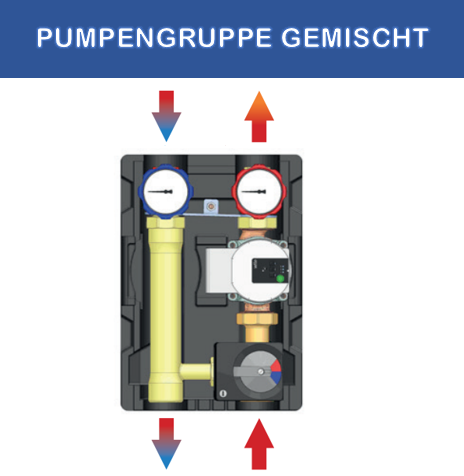

Mixing group with variable control unit. It is equipped with a 3-way mixing valve controlled by a 3-point modulating and bidirectionally rotating electric actuator, which can be connected to control units; the valve has a bypass that introduces part of the return flow into the supply flow to achieve the desired medium temperature. The pump has 1 1/2" connections and can be asynchronous (not for sale in the EU) or electronic. The mixing unit is also equipped with two shut-off ball valves with integrated thermometers for immediate reading of the flow and return temperatures (the return ball valve has an integrated check valve). It can be ordered without a pump, with the flow pump on the right or left (for on-site modifications, please follow the technical instructions included); the unit is supplied with a black PPE-insulated jacket.
